DC blower fan type AV-F5015

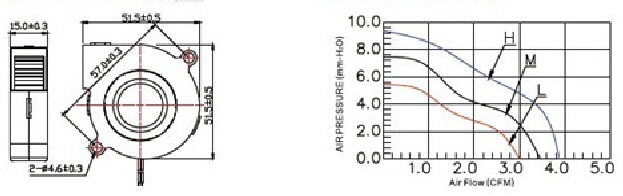

SIZE:
50x50x15mm
CONSTRUCTION:
Glass fiber reinforced thermoplastic
Impeller and housing UL94V-0
OPERATING TEMPERATURE:
Sleeve bearing -10C to +70C
INSULATION RESISTANCE:
>10 megohm at 500VDC
(frame-terminal/wires)
DIELECTRIC STRENGTH:
500V/60HZ, 5mA, 1 minute
(frame-terminal)
|
MODEL |
BEARING TYPE |
RATED VOLTAGE (DC) |
OPERATING VOLTAGE (DC) |
CURRENT (A) |
SPEED (RPM) |
AIR FLOW (CFM) |
STATIC PRESSURE (mmH2O) |
NOISE LEVEL (dBA) |
WEIGHT (g) |
|
AV-F5015HS05 |
SLEEVE |
5 |
4.5-5.5 |
0.30 |
4200 |
3.92 |
9.05 |
35.00 |
25 |
|
AV-F5015MS05 |
SLEEVE |
5 |
4.5-5.5 |
0.23 |
3800 |
3.42 |
7.22 |
32.77 |
25 |
|
AV-F5015LS05 |
SLEEVE |
5 |
4.5-5.5 |
0.17 |
3500 |
3.00 |
5.50 |
31.00 |
25 |
|
AV-F5015HB05 |
BALL |
5 |
4.5-5.5 |
0.30 |
4200 |
3.92 |
9.05 |
35.00 |
25 |
|
AV-F5015MB05 |
BALL |
5 |
4.5-5.5 |
0.23 |
3800 |
3.42 |
7.22 |
32.77 |
25 |
|
AV-F5015LB05 |
BALL |
5 |
4.5-5.5 |
0.17 |
3500 |
3.00 |
5.50 |
31.00 |
25 |
|
AV-F5015HS |
SLEEVE |
12 |
10.8-13.2 |
0.16 |
4200 |
3.92 |
9.05 |
35.00 |
25 |
|
AV-F5015MS |
SLEEVE |
12 |
10.8-13.2 |
0.12 |
3800 |
3.42 |
7.22 |
32.77 |
25 |
|
AV-F5015LS |
SLEEVE |
12 |
10.8-13.2 |
0.08 |
3500 |
3.00 |
5.50 |
31.00 |
25 |
|
AV-5015HB |
BALL |
12 |
10.8-13.2 |
0.16 |
4200 |
3.92 |
9.05 |
35.00 |
25 |
|
AV-5015MB |
BALL |
12 |
10.8-13.2 |
0.12 |
3800 |
3.42 |
7.22 |
32.77 |
25 |
|
AV-5015LB |
BALL |
12 |
10.8-13.2 |
0.08 |
3500 |
3.00 |
5.50 |
31.00 |
25 |
