DC blower fan type AV-F12032

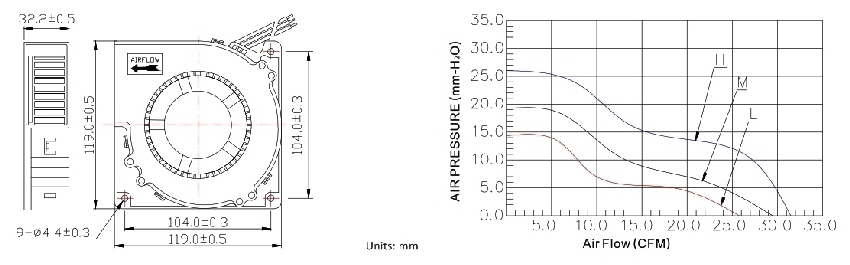

SIZE:
120x120x32mm
CONSTRUCTION:
Glass fiber reinforced thermoplastic
Impeller and housing UL94V-0
OPERATING TEMPERATURE:
Sleeve bearing -10C to +70C
INSULATION RESISTANCE:
>10 megohm at 500VDC
(frame-terminal/wires)
DIELECTRIC STRENGTH:
500V/60HZ, 5mA, 1 minute
(frame-terminal)
|
MODEL |
BEARING TYPE |
RATED VOLTAGE (DC) |
OPERATING VOLTAGE (DC) |
CURRENT (A) |
SPEED (RPM) |
AIR FLOW (CFM) |
STATIC PRESSURE (mmH2O) |
NOISE LEVEL (dBA) |
WEIGHT (g) |
|
AV-F12032HS |
SLEEVE |
12 |
10.8-13.2 |
0.60 |
2100 |
31.83 |
25.10 |
45.80 |
240 |
|
AV-F12032MS |
SLEEVE |
12 |
10.8-13.2 |
0.50 |
1800 |
28.89 |
18.55 |
43.70 |
240 |
|
AV-F12032LS |
SLEEVE |
12 |
10.8-13.2 |
0.32 |
1600 |
25.87 |
14.10 |
40.90 |
240 |
|
AV-F12032HB |
BALL |
12 |
10.8-13.2 |
0.60 |
2100 |
31.83 |
25.10 |
45.80 |
240 |
|
AV-F12032MB |
BALL |
12 |
10.8-13.2 |
0.50 |
1800 |
28.89 |
18.55 |
43.70 |
240 |
|
AV-F12032LB |
BALL |
12 |
10.8-13.2 |
0.32 |
1600 |
25.87 |
14.10 |
40.90 |
240 |
|
AV-F12032HS24 |
SLEEVE |
24 |
21.6-26.4 |
0.40 |
2100 |
31.83 |
25.10 |
45.80 |
240 |
|
AV-F12032MS24 |
SLEEVE |
24 |
21.6-26.4 |
0.30 |
1800 |
28.89 |
18.55 |
43.70 |
240 |
|
AV-F12032LS24 |
SLEEVE |
24 |
21.6-26.4 |
0.20 |
1600 |
25.87 |
14.10 |
40.90 |
240 |
|
AV-F12032HB24 |
BALL |
24 |
21.6-26.4 |
0.40 |
2100 |
31.83 |
25.10 |
45.80 |
240 |
|
AV-F12032MB24 |
BALL |
24 |
21.6-26.4 |
0.30 |
1800 |
28.89 |
18.55 |
43.70 |
240 |
|
AV-F12032LB24 |
BALL |
24 |
21.6-26.4 |
0.20 |
1600 |
25.87 |
14.10 |
40.90 |
240 |
