AC axial fan type AV-A9225

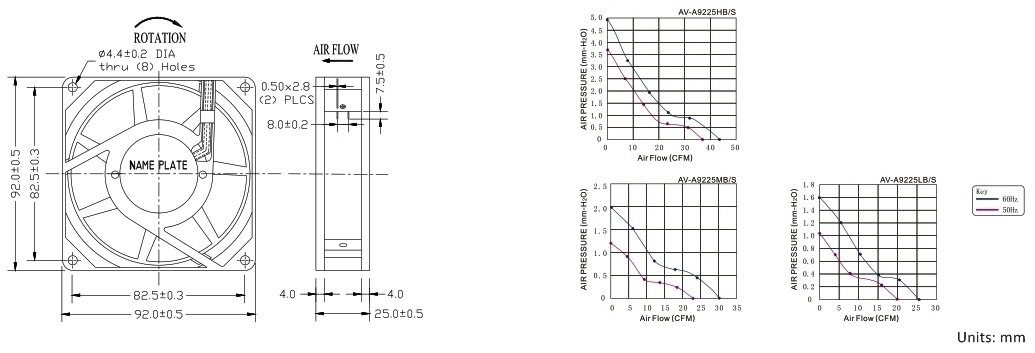

SIZE: 92x25mm
CONSTRUCTION:
Black die-cast aluminum housing
Glass fiber reinforced thermoplastic impeller UL94V-0
MOTOR:
Shaded pole, Impedance protected
CONNECTION:
Wire or terminal
OPERATING TEMPERATURE:
Ball bearing -30 to +75, sleeve bearing -10C to +70C
INSULATION RESISTANCE:
>10 megohm at 500VDC, (frame-terminal/wires)
DIELECTRIC STRENGTH:
500V/60HZ, 5mA, 1 minute, (frame-terminal/wires)
|
MODEL |
BEARING TYPE |
RATED VOLTAGE (VAC) |
FREQUENCY (HZ) |
CURRENT (A) |
POWER (W) |
SPEED (RPM) |
NOISE LEVEL (dBA) |
AIR FLOW (M2/M) |
AIR FLOW (CFM) |
STATIC PRESSURE (mmH2O) |
WEIGHT (g) |
|
AV-A9225HB10 |
Ball |
115 |
50/60 |
0.12/0.1 |
14/13.5 |
2500/2900 |
32/37 |
0.85/1.05 |
30/37 |
3.3/4.83 |
240 |
|
AV-A9225HS10 |
Sleeve |
115 |
50/60 |
0.12/0.1 |
14/13.5 |
2500/2900 |
32/37 |
0.85/1.05 |
30/37 |
3.3/4.83 |
240 |
|
AV-A9225MB10 |
Ball |
115 |
50/60 |
0.09/0.08 |
11/10 |
2300/2600 |
25/33 |
0.71/0.85 |
25/30 |
3.0/3.5 |
240 |
|
AV-A9225MS10 |
Sleeve |
115 |
50/60 |
0.09/0.08 |
11/10 |
2300/2600 |
25/33 |
0.71/0.85 |
25/30 |
3.0/3.5 |
240 |
|
AV-A9225LB10 |
Ball |
115 |
50/60 |
0.07/0.07 |
9/8 |
2000/2200 |
22/24 |
0.6/0.62 |
21/22 |
2.7/2.6 |
240 |
|
AV-A9225LS10 |
Sleeve |
115 |
50/60 |
0.07/0.07 |
9/8 |
2000/2200 |
22/24 |
0.6/0.62 |
21/22 |
2.7/2.6 |
240 |
|
AV-A9225HB20 |
Ball |
220-240 |
50/60 |
0.08/0.07 |
16/15 |
2500/2900 |
32/37 |
0.85/1.05 |
30/37 |
3.3/4.83 |
240 |
|
AV-A9225HS20 |
Sleeve |
220-240 |
50/60 |
0.08/0.07 |
16/15 |
2500/2900 |
32/37 |
0.85/1.05 |
30/37 |
3.3/4.83 |
240 |
|
AV-A9225MB20 |
Ball |
220-240 |
50/60 |
0.07/0.06 |
13/12 |
2300/2600 |
25/33 |
0.71/0.85 |
25/30 |
3.0/3.5 |
240 |
|
AV-A9225MS20 |
Sleeve |
220-240 |
50/60 |
0.07/0.06 |
13/12 |
2300/2600 |
25/33 |
0.71/0.85 |
25/30 |
3.0/3.5 |
240 |
|
AV-A9225LB20 |
Ball |
220-240 |
50/60 |
0.05/0.05 |
9/8 |
2000/2200 |
22/24 |
0.6/0.62 |
21/22 |
2.7/2.6 |
240 |
|
AV-A9225LS20 |
Sleeve |
220-240 |
50/60 |
0.05/0.05 |
9/8 |
2000/2200 |
22/24 |
0.6/0.62 |
21/22 |
2.7/2.6 |
240 |
|
AV-A9225HB30 |
Ball |
380 |
50 |
0.07 |
14 |
2500 |
32 |
0.85 |
30 |
3.3 |
240 |
|
AV-A9225HS30 |
Sleeve |
380 |
50 |
0.07 |
14 |
2500 |
32 |
0.85 |
30 |
3.3 |
240 |
