AC axial fan type AV-A17238

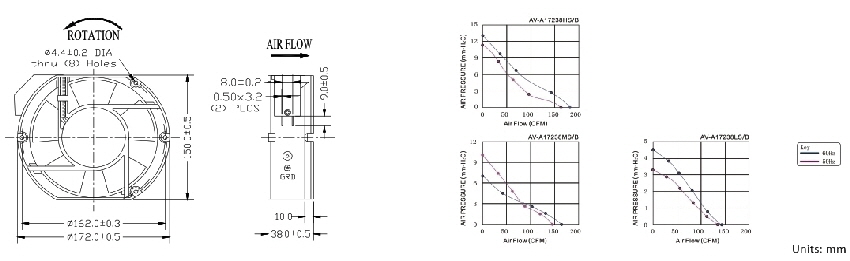

SIZE: 172x38mm
CONSTRUCTION:
Black die-cast aluminum housing
Glass fiber reinforced thermoplastic impeller UL94V-0
MOTOR:
Shaded pole, Impedance protected
CONNECTION:
Wire or terminal
OPERATING TEMPERATURE:
Ball bearing -30 to +75, sleeve bearing -10C to +70C
INSULATION RESISTANCE:
>10 megohm at 500VDC, (frame-terminal/wires)
DIELECTRIC STRENGTH:
500V/60HZ, 5mA, 1 minute, (frame-terminal/wires)
|
MODEL |
BEARING TYPE |
RATED VOLTAGE (VAC) |
FREQUENCY (HZ) |
CURRENT (A) |
POWER (W) |
SPEED (RPM) |
NOISE LEVEL (dBA) |
AIR FLOW (M2/M) |
AIR FLOW (CFM) |
STATIC PRESSURE (mmH2O) |
WEIGHT (g) |
|
AV-A17238HB10 |
Ball |
115 |
50/60 |
0.50/0.45 |
37/36 |
2700/3100 |
45/50 |
5.37/6.65 |
190/235 |
16.0/17.78 |
908 |
|
AV-A17238HS10 |
Sleeve |
115 |
50/60 |
0.50/0.45 |
37/36 |
2700/3100 |
45/50 |
5.37/6.65 |
190/235 |
16.0/17.78 |
908 |
|
AV-A17238MB10 |
Ball |
115 |
50/60 |
0.41/0.39 |
32/30 |
2400/2300 |
41/40 |
4.0/4.5 |
170/160 |
15/14 |
908 |
|
AV-A17238MS10 |
Sleeve |
115 |
50/60 |
0.41/0.39 |
32/30 |
2400/2300 |
41/40 |
4.0/4.5 |
170/160 |
15/14 |
908 |
|
AV-A17238LB10 |
Ball |
115 |
50/60 |
0.35/0.35 |
26/25 |
1900/1500 |
32/30 |
3.5/3.0 |
125/105 |
8/6 |
908 |
|
AV-A17238LS10 |
Sleeve |
115 |
50/60 |
0.35/0.35 |
26/25 |
1900/1500 |
32/30 |
3.5/3.0 |
125/105 |
8/6 |
908 |
|
AV-A17238HB20 |
Ball |
220-240 |
50/60 |
0.22/0.21 |
34/33 |
2700/3100 |
45/50 |
5.37/6.65 |
190/235 |
16.0/17.78 |
908 |
|
AV-A17238HS20 |
Sleeve |
220-240 |
50/60 |
0.22/0.21 |
34/33 |
2700/3100 |
45/50 |
5.37/6.65 |
190/235 |
16.0/17.78 |
908 |
|
AV-A17238MB20 |
Ball |
220-240 |
50/60 |
0.19/0.18 |
30/28 |
2400/2300 |
41/40 |
4.0/4.5 |
170/160 |
15/14 |
908 |
|
AV-A17238MS20 |
Sleeve |
220-240 |
50/60 |
0.19/0.18 |
30/28 |
2400/2300 |
41/40 |
4.0/4.5 |
170/160 |
15/14 |
908 |
|
AV-A17238LB20 |
Ball |
220-240 |
50/60 |
0.16/0.16 |
26/25 |
1900/1500 |
32/30 |
3.5/3.0 |
125/105 |
8/6 |
908 |
|
AV-A17238LS20 |
Sleeve |
220-240 |
50/60 |
0.16/0.16 |
26/25 |
1900/1500 |
32/30 |
3.5/3.0 |
125/105 |
8/6 |
908 |
|
AV-A17238HB30 |
Ball |
380 |
50 |
0.11 |
34 |
2700 |
45 |
5.37 |
190 |
15 |
908 |
|
AV-A17238HS30 |
Sleeve |
380 |
50 |
0.11 |
34 |
2700 |
45 |
5.37 |
190 |
15 |
908 |
