AC axial fan type AV-A12025

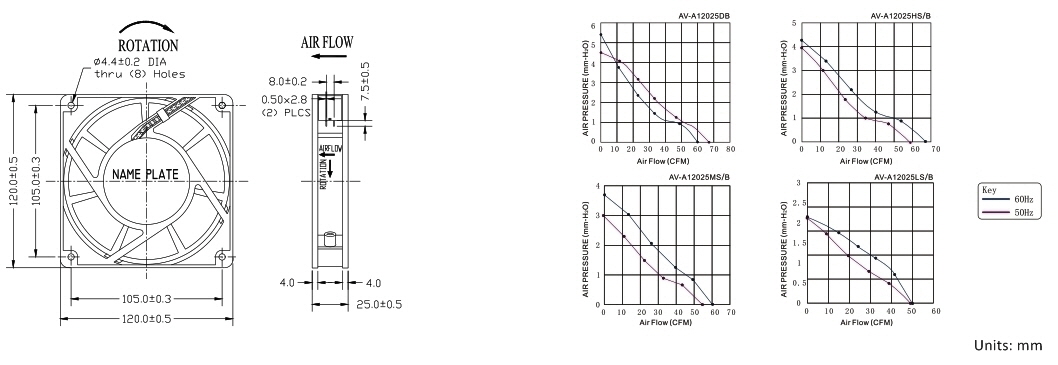

SIZE: 120x25mm
CONSTRUCTION:
Black die-cast aluminum housing
Glass fiber reinforced thermoplastic impeller UL94V-0
MOTOR:
Shaded pole, Impedance protected
CONNECTION:
Wire or terminal
OPERATING TEMPERATURE:
Ball bearing -30 to +75, sleeve bearing -10C to +70C
INSULATION RESISTANCE:
>10 megohm at 500VDC, (frame-terminal/wires)
DIELECTRIC STRENGTH:
500V/60HZ, 5mA, 1 minute, (frame-terminal/wires)
|
MODEL |
BEARING TYPE |
RATED VOLTAGE (VAC) |
FREQUENCY (HZ) |
CURRENT (A) |
POWER (W) |
SPEED (RPM) |
NOISE LEVEL (dBA) |
AIR FLOW M2/M) |
AIR FLOW (CFM) |
STATIC PRESSURE (mmH2O) |
WEIGHT (g) |
|
AV-A12025HB10 |
Ball |
115 |
50/60 |
0.19/0.18 |
19/18 |
2200/2400 |
38/40 |
1.87/2.21 |
66/78 |
3.56/4.06 |
370 |
|
AV-A12025HS10 |
Sleeve |
115 |
50/60 |
0.19/0.18 |
19/18 |
2200/2400 |
38/40 |
1.87/2.21 |
66/78 |
3.56/4.06 |
370 |
|
AV-A12025MB10 |
Ball |
115 |
50/60 |
0.16/0.15 |
16/15 |
2000/2000 |
35/35 |
1.64/1.64 |
58/58 |
3.0/3.2 |
370 |
|
AV-A12025MS10 |
Sleeve |
115 |
50/60 |
0.16/0.15 |
16/15 |
2000/2000 |
35/35 |
1.64/1.64 |
58/58 |
3.0/3.2 |
370 |
|
AV-A12025LB10 |
Ball |
115 |
50/60 |
0.13/0.11 |
14/13 |
1800/1700 |
30/29 |
1.4/1.36 |
50/48 |
2.78/2.68 |
370 |
|
AV-A12025LS10 |
Sleeve |
115 |
50/60 |
0.13/0.11 |
14/13 |
1800/1700 |
30/29 |
1.4/1.36 |
50/48 |
2.78/2.68 |
370 |
|
AV-A12025HB20 |
Ball |
220-240 |
50/60 |
0.09/0.09 |
19/18 |
2200/2400 |
38/40 |
1.87/2.21 |
66/78 |
3.56/4.06 |
370 |
|
AV-A12025HS20 |
Sleeve |
220-240 |
50/60 |
0.09/0.09 |
19/18 |
2200/2400 |
38/40 |
1.87/2.21 |
66/78 |
3.56/4.06 |
370 |
|
AV-A12025MB20 |
Ball |
220-240 |
50/60 |
0.07/0.07 |
16/15 |
2000/2000 |
35/35 |
1.64/1.64 |
58/58 |
3.0/3.2 |
370 |
|
AV-A12025MS20 |
Sleeve |
220-240 |
50/60 |
0.07/0.07 |
16/15 |
2000/2000 |
35/35 |
1.64/1.64 |
58/58 |
3.0/3.2 |
370 |
|
AV-A12025LB20 |
Ball |
220-240 |
50/60 |
0.05/0.05 |
14/13 |
1800/1700 |
30/29 |
1.4/1.36 |
50/48 |
2.78/2.68 |
370 |
|
AV-A12025LS20 |
Sleeve |
220-240 |
50/60 |
0.05/0.05 |
14/13 |
1800/1700 |
30/29 |
1.4/1.36 |
50/48 |
2.78/2.68 |
370 |
|
AV-A12025HB30 |
Ball |
380 |
50 |
0.06 |
14 |
2200 |
38 |
1.87 |
66 |
3.56 |
370 |
|
AV-A12025HS30 |
Sleeve |
380 |
50 |
0.06 |
14 |
2200 |
38 |
1.87 |
66 |
3.56 |
370 |
