HI-performance centrifugal blower fans AV-F9733

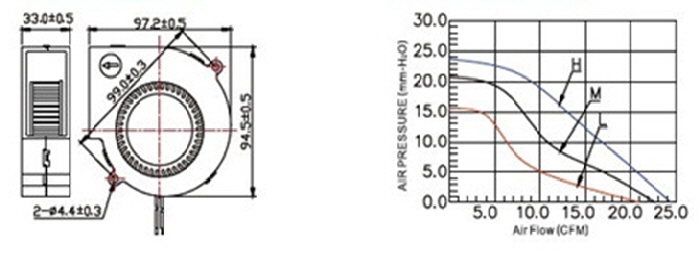

SIZE:
97x93x33mm
CONSTRUCTION:
Glass fiber reinforced thermoplastic
Impeller and housing UL94V-0
OPERATING TEMPERATURE:
Sleeve bearing -10C to +70C
INSULATION RESISTANCE:
>10 megohm at 500VDC
(frame-terminal/wires)
DIELECTRIC STRENGTH:
500V/60HZ, 5mA, 1 minute
(frame-terminal/wires)
|
MODEL |
FRAME SIZE (mm) |
BEARING TYPE |
RATED VOLTAGE (DC) |
OPERATING VOLTAGES (DC) |
CURRENT (A) |
SPEED (RPM) |
AIRFLOW (CFM) |
STATIC PRESSURE (mm Hg) |
NOISE LEVEL (Db-A) |
WEIGHT (gm) |
|
AV-F9733DB |
97*93*33 |
BALL |
12 |
6.0-13.8 |
2 |
5500 |
36.6 |
59.7 |
62 |
165 |
|
AV-F9733DB |
97*93*33 |
BALL |
12 |
6.0-13.8 |
1.5 |
5000 |
33.3 |
47.4 |
60 |
165 |
|
AV-F9733DB24 |
97*93*33 |
BALL |
24 |
12.0-27.6 |
1 |
5500 |
36.6 |
59.7 |
62 |
165 |
|
AV-F9733DB24 |
97*93*33 |
BALL |
24 |
12.0-27.6 |
1 |
5000 |
33.3 |
47.4 |
60 |
165 |
|
AV-F9733DB48 |
97*93*33 |
BALL |
48 |
24.0-55.2 |
1 |
5500 |
36.6 |
59.7 |
62 |
165 |
|
AV-F9733DB48 |
97*93*33 |
BALL |
48 |
24.0-55.2 |
0.4 |
5000 |
33.3 |
47.4 |
60 |
165 |
