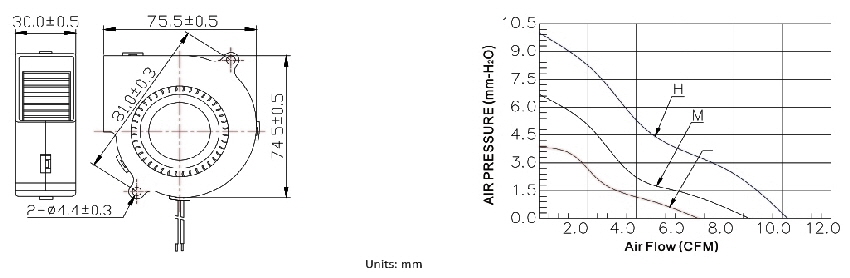

DC blower fan type AV-F7530
SIZE:
75x75x30mm
CONSTRUCTION:
Glass fiber reinforced thermoplastic
Impeller and housing UL94V-0
OPERATING TEMPERATURE:
Sleeve bearing -10C to +70C
INSULATION RESISTANCE:
>10 megohm at 500VDC
(frame-terminal/wires)
DIELECTRIC STRENGTH:
500V/60HZ, 5mA, 1 minute
(frame-terminal)
|
MODEL |
BEARING TYPE |
RATED VOLTAGE (DC) |
OPERATING VOLTAGE (DC) |
CURRENT (A) |
SPEED (RPM) |
AIR FLOW (CFM) |
STATIC PRESSURE (mmH2O) |
NOISE LEVEL (dBA) |
WEIGHT (g) |
|
AV-F7530HS |
SLEEVE |
12 |
10.8-13.2 |
0.50 |
3000 |
10.50 |
9.80 |
37.50 |
76 |
|
AV-F7530MS |
SLEEVE |
12 |
10.8-13.2 |
0.40 |
2500 |
8.80 |
6.60 |
35.50 |
76 |
|
AV-F7530LS |
SLEEVE |
12 |
10.8-13.2 |
0.30 |
2000 |
7.10 |
3.90 |
27.50 |
76 |
|
AV-F7530HB |
BALL |
12 |
10.8-13.2 |
0.50 |
3000 |
10.50 |
9.80 |
37.50 |
76 |
|
AV-F7530MB |
BALL |
12 |
10.8-13.2 |
0.40 |
2500 |
8.80 |
6.60 |
35.50 |
76 |
|
AV-F7530LB |
BALL |
12 |
10.8-13.2 |
0.30 |
2000 |
7.10 |
3.90 |
27.50 |
76 |
|
AV-F7530HS24 |
SLEEVE |
24 |
21.6-26.4 |
0.30 |
3000 |
10.50 |
9.80 |
37.50 |
76 |
|
AV-F7530MS24 |
SLEEVE |
24 |
21.6-26.4 |
0.24 |
2500 |
8.80 |
6.60 |
35.50 |
76 |
|
AV-F7530LS24 |
SLEEVE |
24 |
21.6-26.4 |
0.18 |
2000 |
7.10 |
3.90 |
27.50 |
76 |
|
AV-F7530HB24 |
BALL |
24 |
21.6-26.4 |
0.30 |
3000 |
10.50 |
9.80 |
37.50 |
76 |
|
AV-F7530MB24 |
BALL |
24 |
21.6-26.4 |
0.24 |
2500 |
8.80 |
6.60 |
35.50 |
76 |
|
AV-F7530LB24 |
BALL |
24 |
21.6-26.4 |
0.18 |
2000 |
7.10 |
3.90 |
27.50 |
76 |
