DC blower fan type AV-F6015

SIZE:
60x60x15mm
CONSTRUCTION:
Glass fiber reinforced thermoplastic
Impeller and housing UL94V-0
OPERATING TEMPERATURE:
Sleeve bearing -10C to +70C
INSULATION RESISTANCE:
>10 megohm at 500VDC
(frame-terminal/wires)
DIELECTRIC STRENGTH:
500V/60HZ, 5mA, 1 minute
(frame-terminal)

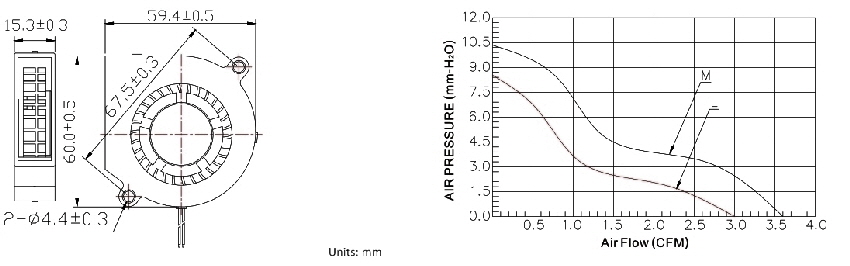

6015

MODEL

BEARING TYPE

RATED VOLTAGE (DC)

OPERATING VOLTAGE (DC)

CURRENT (A)

SPEED (RPM)

AIR FLOW (CFM)

STATIC PRESSURE (mmH2O)

NOISE LEVEL (dBA)

WEIGHT (g)

AV-F6015MS05

SLEEVE

5

4.5-5.5

0.35

3500

3.60

10.02

33.50

35

AV-F6015LS05

SLEEVE

5

4.-5.5

0.12

2800

3.00

7.92

28.20

35

AV-F6015MS

SLEEVE

12

10.8-13.2

0.20

3500

3.60

10.02

33.50

35

AV-F6015LS

SLEEVE

12

10.8-13.2

0.16

2800

3.00

7.92

28.20

35
