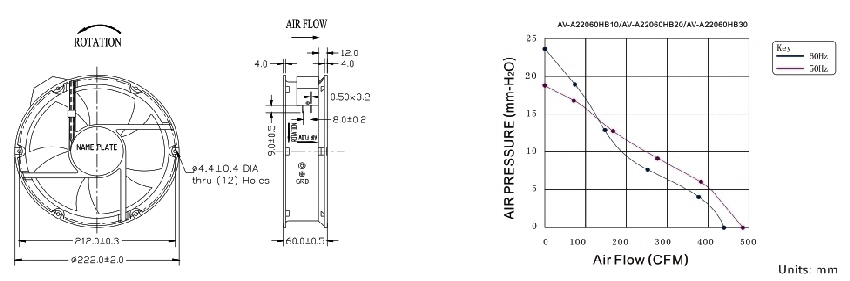

AC axial fan type AV-A22060
SIZE: 220x60mm
CONSTRUCTION:
Black die-cast aluminum housing
Glass fiber reinforced thermoplastic impeller UL94V-0
MOTOR:
Shaded pole, Impedance protected
CONNECTION:
Wire or terminal
OPERATING TEMPERATURE:
Ball bearing -30 to +75, sleeve bearing -10C to +70C
INSULATION RESISTANCE:
>10 megohm at 500VDC, (frame-terminal/wires)
DIELECTRIC STRENGTH:
500V/60HZ, 5mA, 1 minute, (frame-terminal/wires))
|
MODEL |
BEARING TYPE |
RATED VOLTAGE (VAC) |
FREQUENCY (HZ) |
CURRENT (A) |
POWER (W) |
SPEED (RPM) |
NOISE LEVEL (dBA) |
AIR FLOW (M2/M) |
AIR FLOW (CFM) |
STATIC PRESSURE (mmH2O) |
WEIGHT (g) |
|
AV-A22060HB10 |
Ball |
115 |
50/60 |
0.76/0.77 |
57/58 |
2400 |
56 |
11 |
388 |
25.4 |
1400 |
|
AV-A22060HB10C |
Ball |
115 |
50/60 |
0.76/0.77 |
50/60 |
2800/3200 |
61/56 |
11.32/12.74 |
400/450 |
28/36 |
1540 |
|
AV-A22060HB20 |
Ball |
220-240 |
50/60 |
0.42/0.46 |
42/38 |
2400 |
56 |
11 |
388 |
25.4 |
1400 |
|
AV-A22060HB20C |
Ball |
220-240 |
50/60 |
0.42/0.46 |
50/60 |
2800/3200 |
61/56 |
11.32/12.74 |
400/450 |
28/36 |
1540 |
|
AV-A22060HB30 |
Ball |
380 |
50 |
0.16 |
47 |
2400 |
56 |
11 |
388 |
25.4 |
1400 |
|
AV-A22060HB30C |
Ball |
380 |
50 |
0.16 |
50 |
2800 |
61 |
11.32 |
400 |
28 |
1540 |
