AC axial fan type AV-A15050

SIZE: 150x50mm
CONSTRUCTION:
Black die-cast aluminum housing
Glass fiber reinforced thermoplastic impeller UL94V-0
MOTOR:
Shaded pole, Impedance protected
CONNECTION:
Wire or terminal
OPERATING TEMPERATURE:
Ball bearing -30 to +75, sleeve bearing -10C to +70C
INSULATION RESISTANCE:
>10 megohm at 500VDC, (frame-terminal/wires)
DIELECTRIC STRENGTH:
500V/60HZ, 5mA, 1 minute, (frame-terminal/wires)

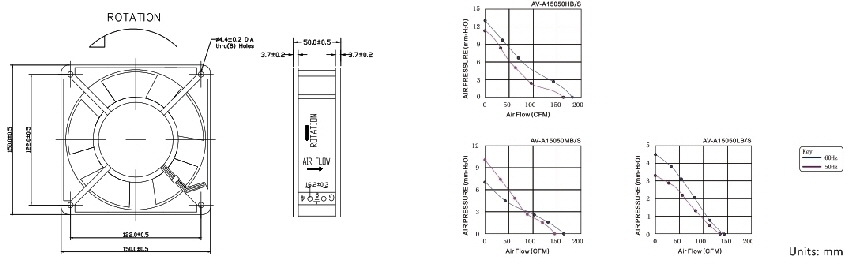

15050

MODEL

BEARING TYPE

RATED VOLTAGE (VAC)

FREQUENCY (HZ)

CURRENT (A)

POWER (W)

SPEED (RPM)

NOISE LEVEL (dBA)

AIR FLOW (MM)

AIR FLOW (CFM)

STATIC PRESSURE (mmH2O)

WEIGHT (g)

AV-A15050HB10

Ball

115

50/60

0.50/0.45

37/36

2700/3100

45/50

5.37/6.65

190/235

16.0/17.78

850

AV-A15050HS10

Sleeve

115

50/60

0.50/0.45

37/36

2700/3100

45/50

5.37/6.65

190/235

16.0/17.78

850

AV-A15050MB10

Ball

115

50/60

0.41/0.39

32/30

2400/2300

41/40

4.0/4.5

170/160

15/14

850

AV-A15050MS10

Sleeve

115

50/60

0.41/0.39

32/30

2400/2300

41/40

4.0/4.5

170/160

15/14

850

AV-A15050LB10

Ball

115

50/60

0.35/0.35

26/25

1900/1500

32/30

3.5/3.0

125/105

8/6

850

AV-A15050LS10

Sleeve

115

50/60

0.35/0.35

26/25

1900/1500

32/30

3.5/3.0

125/105

8/6

850

AV-A15050HB20

Ball

220-240

50/60

0.22/0.21

34/33

2700/3100

45/50

5.37/6.65

190/235

16.0/17.78

850

AV-A15050HS20

Sleeve

220-240

50/60

0.22/0.21

34/33

2700/3100

45/50

5.37/6.65

190/235

16.0/17.78

850

AV-A15050MB20

Ball

220-240

50/60

0.19/0.18

30/28

2400/2300

41/40

4.0/4.5

170/160

15/14

850

AV-A15050MS20

Sleeve

220-240

50/60

0.19/0.18

30/28

2400/2300

41/40

4.0/4.5

170/160

15/14

850

AV-A15050LB20

Ball

220-240

50/60

0.16/0.16

26/25

1900/1500

32/30

3.5/3.0

125/105

8/6

850

AV-A15050LS20

Sleeve

220-240

50/60

0.16/0.16

26/25

1900/1500

32/30

3.5/3.0

125/105

8/6

850

AV-A15050HB30

Ball

380

50

0.11

34

2700

45

5.37

190

15

850

AV-A15050HS30

Sleeve

380

50

0.11

34

2700

45

5.37

190

15

850
