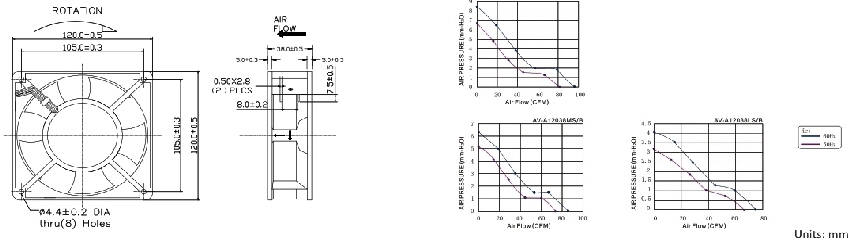

AC axial fan type AV-A12038-HI OUTPUT
SIZE: 120x38mm
CONSTRUCTION:
Black die-cast aluminum housing
Glass fiber reinforced thermoplastic impeller UL94V-0
MOTOR:
Shaded pole, Impedance protected
CONNECTION:
Wire or terminal
OPERATING TEMPERATURE:
Ball bearing -30 to +75, sleeve bearing -10C to +70C
INSULATION RESISTANCE:
>10 megohm at 500VDC, (frame-terminal/wires)
DIELECTRIC STRENGTH:
500V/60HZ, 5mA, 1 minute, (frame-terminal/wires)
|
MODEL |
BEARING TYPE |
RATED VOLTAGE (VAC) |
FREQUENCY (HZ) |
CURRENT (A) |
POWER (W) |
SPEED (RPM) |
NOISE LEVEL (dBA) |
AIR FLOW (M2/M) |
AIR FLOW (CFM) |
STATIC PRESSURE (mmH2O) |
WEIGHT (g) |
|
AV-A12038HB10 |
Ball |
115 |
50/60 |
0.22/0.18 |
21/18 |
2550/2950 |
40/45 |
2.72/3.37 |
96/119 |
6.67/8.01 |
540 |
|
AV-A12038HS10 |
Sleeve |
115 |
50/60 |
0.22/0.18 |
21/18 |
2550/2950 |
40/45 |
2.72/3.37 |
96/119 |
6.67/8.01 |
540 |
|
AV-A12038MB10 |
Ball |
115 |
50/60 |
0.17/0.15 |
16/14 |
2400/2200 |
37/35 |
2.4/2.21 |
85/78 |
4.9/4.5 |
540 |
|
AV-A12038MS10 |
Sleeve |
115 |
50/60 |
0.17/0.15 |
16/14 |
2400/2200 |
37/35 |
2.4/2.21 |
85/78 |
4.9/4.5 |
540 |
|
AV-A12038LB10 |
Ball |
115 |
50/60 |
0.14/0.12 |
12/10.5 |
2000/1800 |
30/29 |
2.00/1.93 |
74/68 |
4.0/3.7 |
540 |
|
AV-A12038LS10 |
Sleeve |
115 |
50/60 |
0.14/0.12 |
12/10.5 |
2000/1800 |
30/29 |
2.00/1.93 |
74/68 |
4.0/3.7 |
540 |
|
AV-A12038HB20 |
Ball |
220?-40 |
50/60 |
0.12/0.11 |
20/19 |
2550/2950 |
40/45 |
2.72/3.37 |
96/119 |
6.67/8.01 |
540 |
|
AV-A12038HS20 |
Sleeve |
220-240 |
50/60 |
0.12/0.11 |
20/19 |
2550/2950 |
40/45 |
2.72/3.37 |
96/119 |
6.67/8.01 |
540 |
|
AV-A12038MB20 |
Ball |
220-240 |
50/60 |
0.09/0.08 |
16/14 |
2400/2200 |
37/35 |
2.4/2.21 |
85/78 |
4.9/4.5 |
540 |
|
AV-A12038MS20 |
Sleeve |
220-240 |
50/60 |
0.09/0.08 |
16/14 |
2400/2200 |
37/35 |
2.4/2.21 |
85/78 |
4.9/4.5 |
540 |
|
AV-A12038LB20 |
Ball |
220-240 |
50/60 |
0.08/0.08 |
12/10.5 |
2000/1800 |
30/29 |
2.00/1.93 |
74/68 |
4.0/3.7 |
540 |
|
AV-A12038LS20 |
Sleeve |
220-240 |
50/60 |
0.08/0.08 |
12/10.5 |
2000/1800 |
30/29 |
2.00/1.93 |
74/68 |
4.0/3.7 |
540 |
|
AV-A12038HB30 |
Ball |
380 |
50 |
0.06 |
18 |
2550 |
40 |
2.72 |
96 |
6.67 |
540 |
|
AV-A12038HS30 |
Sleeve |
380 |
50 |
0.06 |
18 |
2550 |
40 |
2.72 |
96 |
6.67 |
540 |
