SIZE: 254x89mm
Output 820-860CFM
CONSTRUCTION:
Black die-cast aluminum housing
Glass fiber reinforced thermoplastic impeller UL94V-0
MOTOR:
Capacitor run Induction
Impedance protected
Input 110/220VAC nom.
CONNECTION:
Wire or terminal
OPERATING TEMPERATURE:
Ball bearing -30 to +75, sleeve bearing -10C to +70C
INSULATION RESISTANCE:
>10 megohm at 500VDC, (frame-terminal/wires)
DIELECTRIC STRENGTH:
500V/60HZ, 5mA, 1 minute, (frame-terminal/wires)

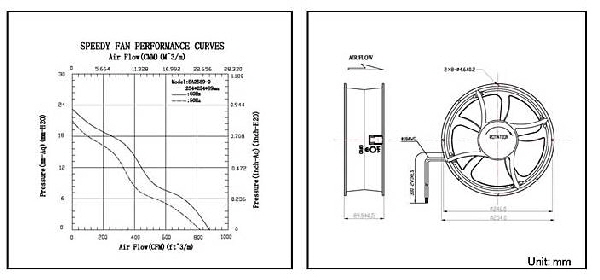

AC axial fan type SA25489
|
Model |
Bearing type |
Nominal voltage (DC) |
Frequency (HZ) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Static pressure (mm/H2O) |
Noise (db-A) |
Weight (GM) |
Input power (W) |
|
SA25489CA1HO |
Dual ball |
110-120 |
50 |
0.5 |
2700 |
820 |
0.795 |
78 |
1780 |
60 |
|
SA25489CA1HO |
Dual ball |
110-120 |
60 |
0.58 |
3000 |
860 |
0.830 |
84 |
1780 |
75 |
|
SA25489CA2HO |
Dual ball |
220-230 |
50 |
0.34 |
2700 |
820 |
0.795 |
78 |
1780 |
74 |
|
SA25489CA2HO |
Dual ball |
220-230 |
60 |
0.43 |
3000 |
860 |
0.830 |
84 |
1780 |
94 |
