SIZE: 180x60mm
Output 345-395CFM
CONSTRUCTION:
Black die-cast aluminum housing
Glass fiber reinforced thermoplastic impeller UL94V-0
MOTOR:
Shaded pole, Impedance protected
Input 110/220VAC nom.
CONNECTION:
Wire or terminal
OPERATING TEMPERATURE:
Ball bearing -30 to +75, sleeve bearing -10C to +70C
INSULATION RESISTANCE:
>10 megohm at 500VDC, (frame-terminal/wires)
DIELECTRIC STRENGTH:
500V/60HZ, 5mA, 1 minute, (frame-terminal/wires)

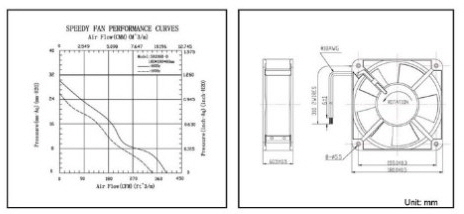

AC axial fan type SA18060
|
Model |
Bearing type |
Nominal voltage (DC) |
Frequency (HZ) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Static pressure (mm/H2O) |
Noise (db-A) |
Weight (GM) |
Input power (W) |
|
SA18060CA1HO |
Dual ball |
110-120 |
50 |
0.28 |
2500 |
345 |
1.01 |
63 |
1600 |
45 |
|
SA18060CA1HO |
Dual ball |
110-120 |
60 |
0.22 |
2800 |
395 |
1.195 |
68 |
1600 |
41 |
|
SA18060CA2HO |
Dual ball |
220-230 |
50 |
0.28 |
2500 |
345 |
1.01 |
63 |
1600 |
45 |
|
SA18060CA2HO |
Dual ball |
220-230 |
60 |
0.22 |
2800 |
395 |
1.195 |
68 |
1600 |
41 |
